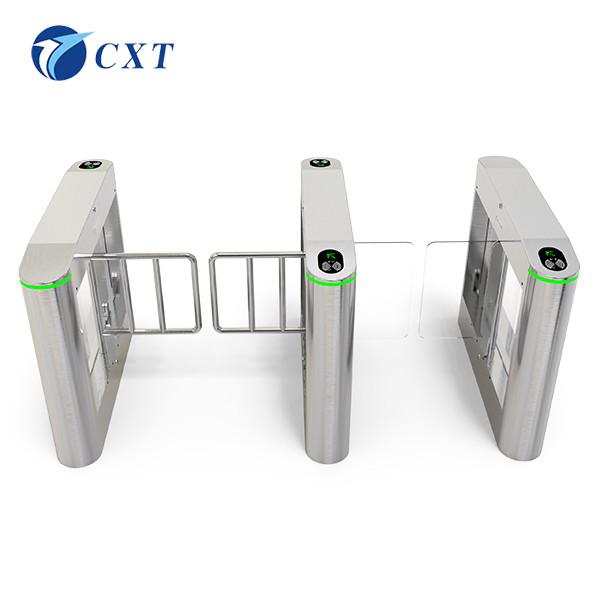

Brushless motor anti-collision acrylic swing arm lamp with colored lights Swing Gate CXT-BW135
| Model |
CXT-BW135 |
| Specifications |
1200x200x1000mm |
| Pole length |
600mm (standard) -900mm/stainless steel tube/acrylic plate |
| Process |
laser, bending, cutting, welding, polishing, grinding, etc. |
| Material |
304 stainless steel |
CXT-BW135 swing gate features:
* Self-check for faults, alarm for illegal passage;
* Free setting of single and two-way control for passage;
* High-brightness light for passage prompt, more intuitive for passage;
* Automatic reset, automatic reset after each swing of 90 degrees and detection of people and objects passing;
* Anti-tailgating, anti-reverse, alarm for illegal entry;
* Unattended: the swing arm is automatically open when power is off, and automatically reset when power is on;
* Fire input: It can be connected to the fire alarm signal to achieve uninterrupted power-off and pole opening;
* Industrial-grade ARM control system, with additional multi-functional digital setting, encryption and reset functions;
* Modular design, easy maintenance;
* Anti-buffering, self-protection is safer;
* Brushless intelligent positioning, smoother operation, faster passage speed;
* Rigorous process details, higher appearance;
Technical parameters of CXT-BW135 swing gate
◇ Shell material: SUS304 high-quality stainless steel
◇ Motor: brushless motor
◇ Shell processing technology: laser, bending, cutting, welding, polishing, grinding, etc.
◇ Weight: single about 50KG, double about 70KG
◇ Channel net width: 650mm (pedestrian), 900mm (car)
◇ Swing arm material: stainless steel tube or acrylic plate
◇ Open/close speed: 0.5-2S adjustable
◇ Motor: 24V/30W brushless
◇ Adaptable temperature: -20℃ ~ 80℃ (add temperature control system below -20℃)
◇ Adaptable humidity: 5%-90%
◇ Delay reset time: adjustable.
◇ Passing speed: ≥ 35 people/minute
◇ Working environment: indoors and outdoors
Can be connected to multiple identification methods, support multiple function customization
Face recognition
IC/ID card
QR code/barcode
Fingerprint recognition
ID card recognition
Ticketing system
Campus system
Community system
Gym system
Attendance system
Construction site system
LED screen
| Serial number |
name |
general swing gate |
anti-collision swing gate |
brushless swing gate |
| 1 |
drive |
motor |
brushed |
brushless |
| 2 |
positioning principle |
optical coupling fixed point |
1/500 decoding |
brushless intelligent positioning |
| 3 |
positioning method |
gear positioning |
clutch positioning |
intelligent reverse thrust no lock |
| 4 |
buffer |
no |
primary buffer |
continuous buffer |
| 5 |
anti-reverse |
no |
yes |
yes |
| 6 |
running speed |
uniform speed |
deceleration |
acceleration and deceleration |
| 7 |
mechanical wear |
large |
no |
small |
| 8 |
illegal mechanical alarm |
(no infrared) no |
yes |
yes |
| 9 |
service life |
1-3 years |
3-5 years |
5-10 years |
| 10 |
transmission life |
3 million times |
5 million times |
10 million times |
| 11 |
parameter setting |
dial code |
dial code |
digital button |
| 12 |
memory |
no |
Yes |
Yes |
| 13 |
Fire input |
Yes |
Yes |
Yes |
| 14 |
Feedback signal output |
Yes |
Yes |
Yes |
| 15 |
Power off |
normally open |
Yes |
Yes |
